Defence Industry Field
DEFENCE INDUSTRY FIELD
Construction of production technology related to the defense products and
localization of control block for the defense and mobility equipment Development of pump, motor and cylinder for the defense products Localization of highly difficult and super precision imported products
localization of control block for the defense and mobility equipment Development of pump, motor and cylinder for the defense products Localization of highly difficult and super precision imported products
We do our best to manufacture and develop various hydraulic goods of mobile equipment for defence industry such as manifold, pump, motor, cylinder and valve.

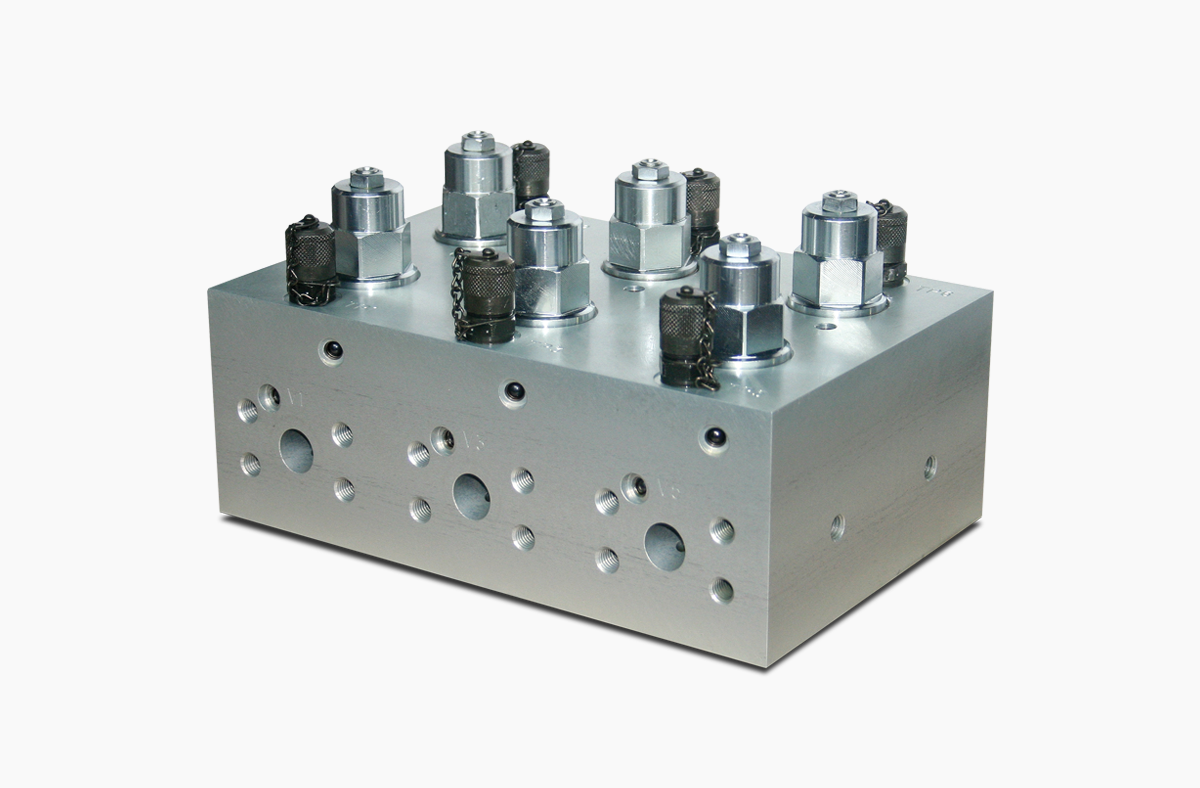

COUNTER BALANCE VALVE BLOCK
K1 AVLB
-
- Working pressure
- 35MPa
-
- Rated flow
- 240ℓ/min
-
- Use
- Cylinder-load control of a K-1 AVLB(Armored Vehicle Launched Bridge)
COUNTER BALANCE VALVE BLOCK
CONTROL BLOCK OF A CAR BODY / EMERGENCY PUMP
K1 ARV
-
- Working pressure
- 32.5MPa
-
- Rated flow
- 22ℓ/min
-
- Use
- Linear control and backside cylinder control of a K-1 ARRV(Armored Repair Recovery Vehicle
CONTROL BLOCK OF A CAR BODY / EMERGENCY PUMP

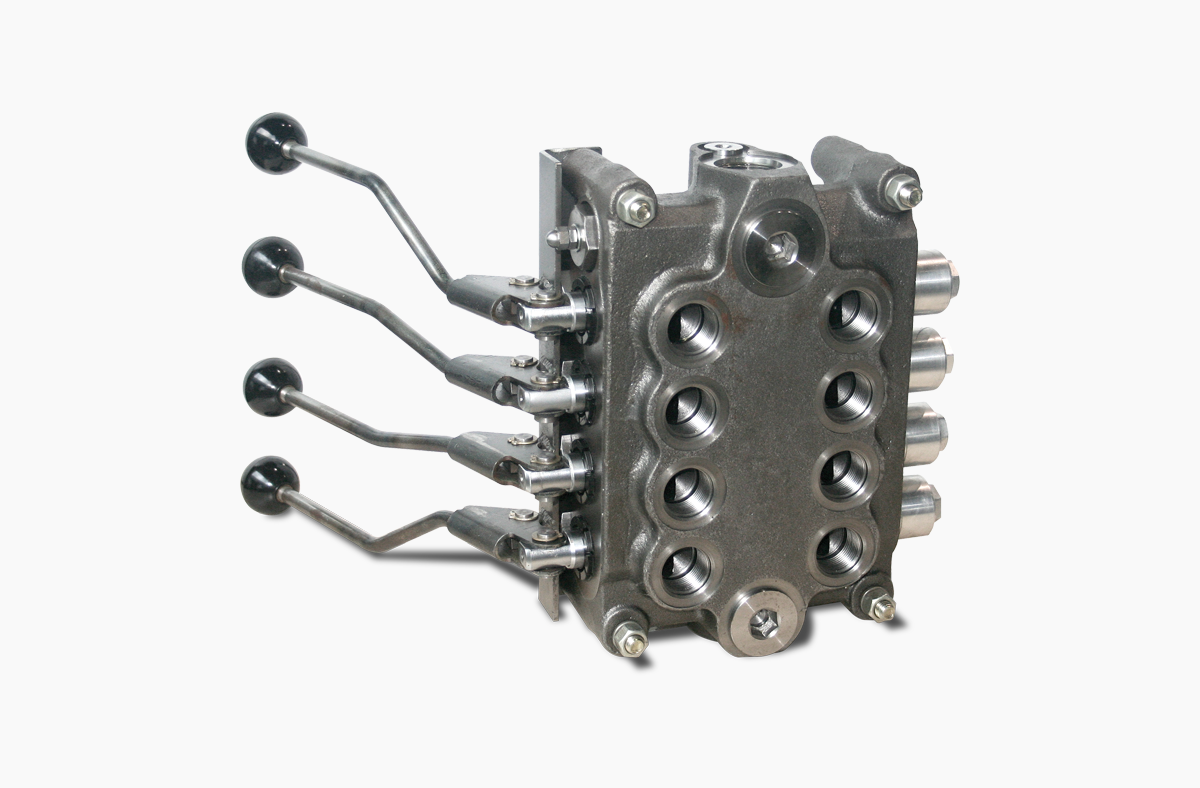

CONTROL VALVE
K712
-
- Working pressure
- 7MPa
-
- Rated flow
- 228ℓ/min
-
- Use
- Hydraulic motor and cylinder control of a 5ton ARRV
CONTROL VALVE

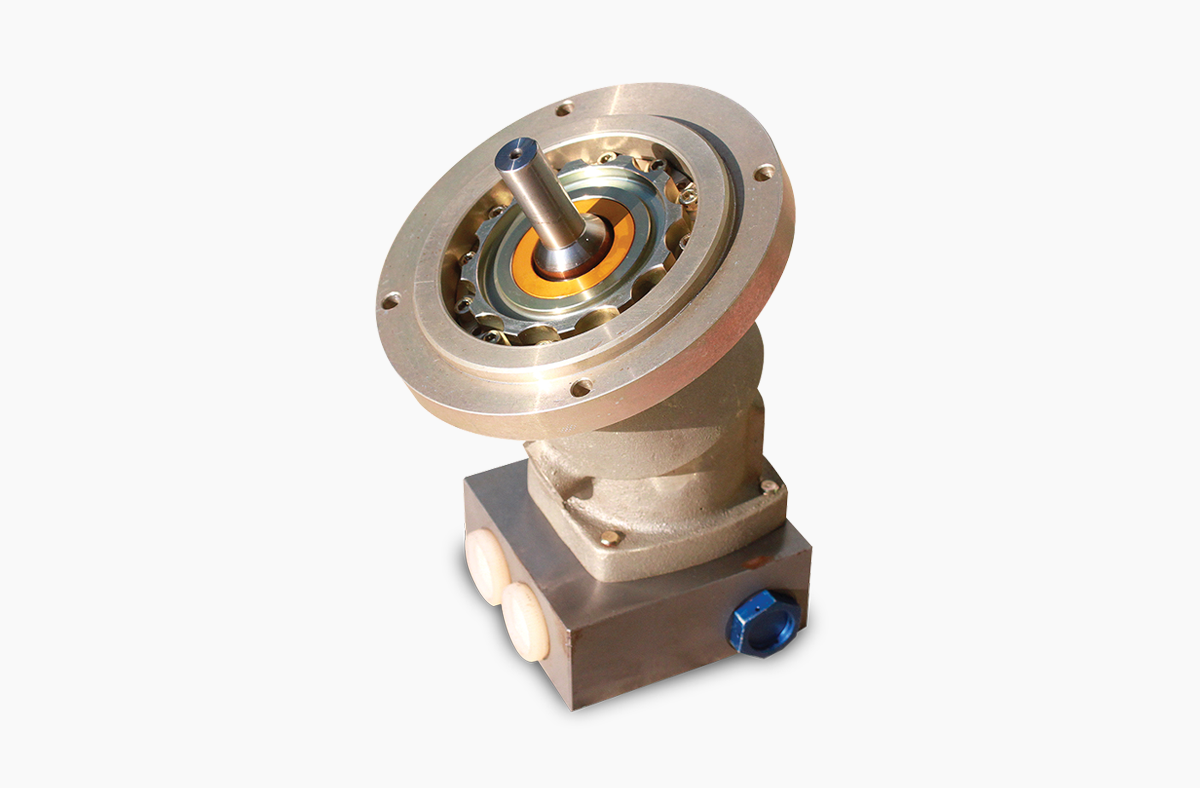

HYDRAULIC PISTON MOTOR
K55
-
- Displacement
- 13.16cc/rev
-
- Max. Speed
- 4,800rpm
-
- Max. Pressure
- 15MPa
-
- Use
- Angle adjuster of turret through spinning constant speed for turning gear assembly of a self-propelled gun
HYDRAULIC PISTON MOTOR

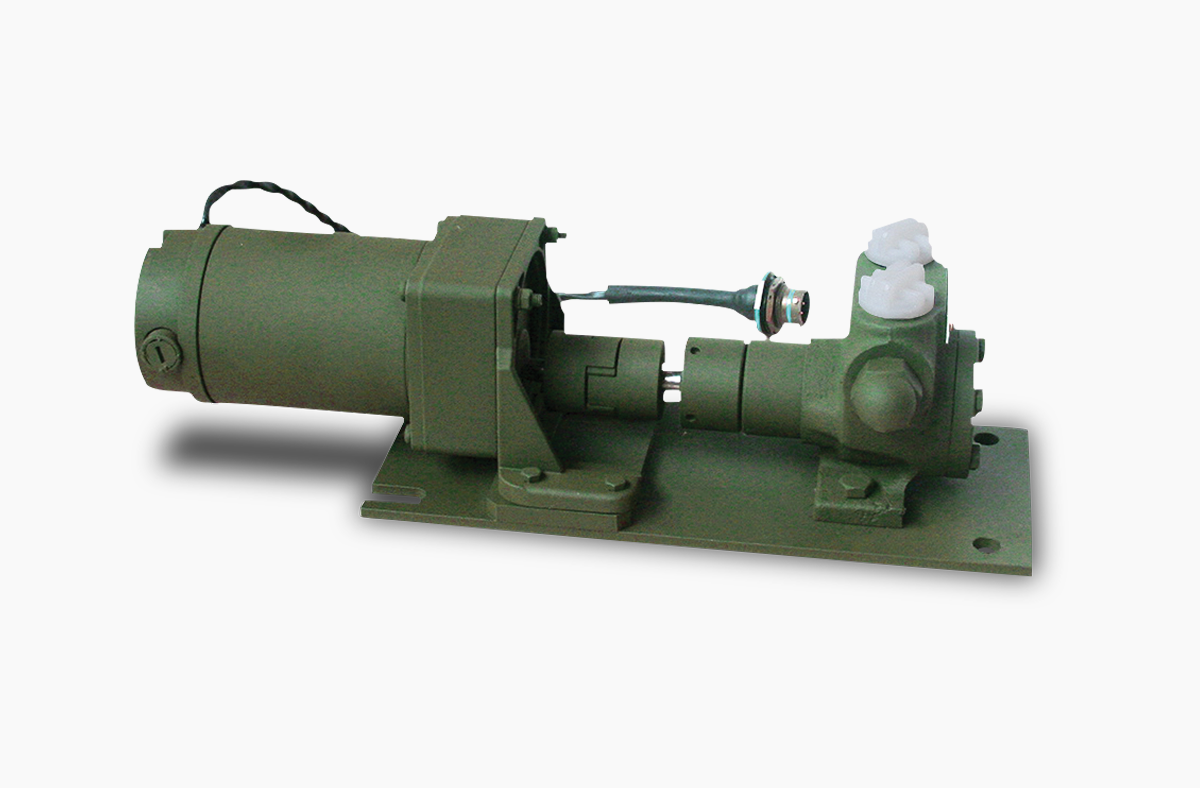

EMULSIFIER GEAR PUMP UNIT
Advanced detoxifi cation machanism
-
- Working pressure
- 0.37MPa
-
- Rated flow
- 3.5ℓ/min
-
- Use
- Constant flow supply for emulsifier of advanced detoxification mechanism
EMULSIFIER GEAR PUMP UNIT
DEPRESSURIZING VALVE
K1 AVLB
-
- Working pressure
- 27.6MPa
-
- Rated flow
- 12ℓ/min
-
- Use
- Cylinder-load and speed control of K-1 AVLB
DEPRESSURIZING VALVE
SEQUENCE VALVE
K1 AVLB
-
- Working pressure
- 27.6MPa
-
- Rated flow
- 12ℓ/min
-
- Use
- Control of cylinder-load and operational sequence for K-1 AVLB
SEQUENCE VALVE
SHUTOFF CAM VALVE
NHK-2 Launcher
-
- Working pressure
- 21MPa
-
- Rated flow
- 57ℓ/min
-
- Components
- Speed control in accordance with launching pad location
SHUTOFF CAM VALVE
HYDRAULIC GEAR PUMP/MOTOR
K712
-
- Working pressure
- 7MPa
-
- Rated flow
- 216ℓ/min
-
- Components
- Speed control in accordance with launching pad location
HYDRAULIC GEAR PUMP/MOTOR
